Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECH-U1H561JX5 CAP FILM 560PF 5% 50VDC 0805 Panasonic Electronic Components	3,992	0.55	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	560 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.043 (1.10mm)	Solder Pads	-	General Purpose	-
MMK5224J63J01L16.5TA18 CAP FILM 0.22UF 5% 63VDC RADIAL KEMET	3,581	0.16	RFQ	Datasheet	Radial	Tape & Box (TB)	MMK	Active	0.22 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
ECH-U1C822JX5 CAP FILM 8200PF 5% 16VDC 0805 Panasonic Electronic Components	3,928	0.57	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	8200 pF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.051 (1.30mm)	Solder Pads	-	General Purpose	-
4ATHBW4330A3GJ CAP FILM 3.3UF 5% 600VDC RADIAL KEMET	2,895	9.20	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AT	Active	3.3 µF	±5%	350V	600V	Polypropylene (PP), Metallized	2.4 mOhms	-40°C ~ 85°C	Through Hole	1.260 L x 0.866 W (32.00mm x 22.00mm)	1.457 (37.00mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
C4AQUBW5200A3MJ CAP FILM 20UF 5% 1.3KVDC RADIAL KEMET	2,694	9.25	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	20 µF	±5%	-	1300V (1.3kV)	Polypropylene (PP), Metallized	6.5 mOhms	-40°C ~ 105°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.783 (45.30mm)	PC Pins	2.067 (52.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
C4AQSBW5150A3OJ CAP FILM 15UF 5% 1.5KVDC RADIAL KEMET	2,785	9.33	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	15 µF	±5%	-	1500V (1.5kV)	Polypropylene (PP), Metallized	3.5 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.378 W (42.00mm x 35.00mm)	1.976 (50.20mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
PHC1405200KR 400V, 20UF, 10 PERCENT, AXIAL SW Nichicon	3,842	9.34	RFQ	Datasheet	Axial	Bulk	PHC	Active	20 µF	±10%	250V	400V	Polypropylene (PP), Metallized	4.3 mOhms	-40°C ~ 85°C	Through Hole	1.378 Dia x 2.087 L (35.00mm x 53.00mm)	-	PC Pins	-	High Frequency, Switching	-

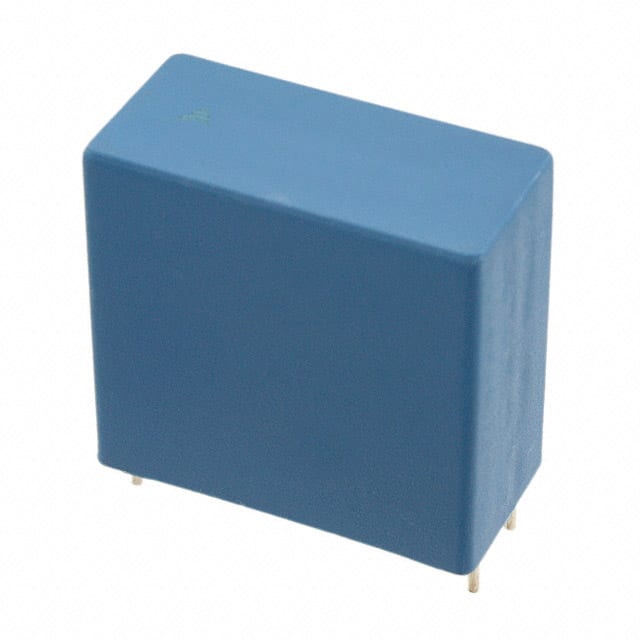

B32776G1805K000 CAP FILM 8UF 10% 1.3KVDC RADIAL EPCOS - TDK Electronics	2,854	9.37	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	8 µF	±10%	-	1300V (1.3kV)	Polypropylene (PP), Metallized	8 mOhms	-40°C ~ 105°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.555 (39.50mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
B32776G0126J000 CAP FILM 12UF 5% 1.1KVDC RADIAL EPCOS - TDK Electronics	2,746	9.39	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	12 µF	±5%	-	1100V (1.1kV)	Polypropylene (PP), Metallized	6.5 mOhms	-40°C ~ 105°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.555 (39.50mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
C4GADUD5150AA1J CAP FILM 15UF 5% 250VDC AXIAL KEMET	3,676	9.41	RFQ	Datasheet	Axial	Bulk	C4G	Active	15 µF	±5%	160V	250V	Polypropylene (PP), Metallized	3.9 mOhms	-40°C ~ 85°C	Through Hole	0.965 Dia x 1.732 L (24.50mm x 44.00mm)	-	PC Pins	-	High Frequency, Switching	-
C4AEGBU5200A12J CAP FILM 20UF 5% 450VDC RADIAL KEMET	3,168	9.46	RFQ	Datasheet	Radial	Bulk	C4AE	Active	20 µF	±5%	-	450V	Polypropylene (PP), Metallized	4.8 mOhms	-40°C ~ 85°C	Through Hole	1.240 L x 0.866 W (31.50mm x 22.00mm)	1.465 (37.20mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
R76IW468050H3J CAP FILM 6.8UF 5% 250VDC RAD KEMET	3,602	9.55	RFQ	Datasheet	Radial	Tray	R76	Active	6.8 µF	±5%	180V	250V	Polypropylene (PP), Metallized	0.6 mOhms	-55°C ~ 125°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.579 (40.10mm)	PC Pins	1.476 (37.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
B32926C3106K000 CAP FILM 10UF 10% 630VDC RADIAL EPCOS - TDK Electronics	2,506	9.65	RFQ	Datasheet	Radial	Bulk	B3292*C/D - X2 Standard	Active	10 µF	±10%	305V	630V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	1.634 L x 1.102 W (41.50mm x 28.00mm)	1.673 (42.50mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X2
R60DR5220AA30J CAP FILM 22UF 5% 63VDC RADIAL KEMET	3,725	9.81	RFQ	Datasheet	Radial	Box	R60	Active	22 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	1.260 L x 0.512 W (32.00mm x 13.00mm)	0.870 (22.10mm)	PC Pins	1.083 (27.50mm)	Automotive	AEC-Q200
R75PW456050H3J CAP FILM 5.6UF 5% 630VDC RADIAL KEMET	3,106	10.00	RFQ	Datasheet	Radial	Tray	R75H	Active	5.6 µF	±5%	250V	630V	Polypropylene (PP), Metallized	4.3 mOhms	-55°C ~ 125°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.736 (44.10mm)	PC Pins	1.476 (37.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
F340X152248MPP2T0 CAP FILM 2.2UF 20% 800VDC RADIAL Vishay Beyschlag/Draloric/BC Components	2,355	10.23	RFQ	Datasheet	Radial	Tray	F340X1	Active	2.2 µF	±20%	480V, 530V	800V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.654 L x 0.846 W (42.00mm x 21.50mm)	1.543 (39.20mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression; 3 Phase	X1
B32776T5126K000 CAP FILM 12UF 10% 575VDC RADIAL EPCOS - TDK Electronics	2,457	10.26	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	12 µF	±10%	-	575V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	-	-	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
C4AQSBW5220A3NJ CAP FILM 22UF 5% 1.5KVDC RADIAL KEMET	3,220	10.37	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	22 µF	±5%	-	1500V (1.5kV)	Polypropylene (PP), Metallized	4.6 mOhms	-40°C ~ 105°C	Through Hole	2.264 L x 1.378 W (57.50mm x 35.00mm)	1.980 (50.30mm)	PC Pins	2.067 (52.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
FFB14E0206K-- CAP FILM 20UF 10% 100VDC RADIAL KYOCERA AVX	2,731	10.39	RFQ	Datasheet	Radial	Bulk	FFB	Active	20 µF	±10%	60V	100V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	1.224 L x 0.512 W (31.10mm x 13.00mm)	0.882 (22.40mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
R75UW382050H4J CAP FILM 0.82UF 5% 2KVDC RADIAL KEMET	3,994	10.52	RFQ	Datasheet	Radial	Tray	R75H	Active	0.82 µF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	3.9 mOhms	-55°C ~ 125°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.736 (44.10mm)	PC Pins	1.476 (37.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
