Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE845VW7100MR30L2CAP FILM 1UF 20% 1.5KVDC RADIAL |
3,689 | 9.37 |
RFQ |
Datasheet |
Radial | Tray | PHE845 | Active | 1 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614 L x 0.827 W (41.00mm x 21.00mm) | 1.496 (38.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|
B32774D4226K000CAP FILM 22UF 10% 450VDC RADIAL |
3,286 | 9.72 |
RFQ |
Datasheet |
Radial | Bulk | B3277* - MKP DC-Link | Active | 22 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.437 (36.50mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
R60IW52205040KCAP FILM 22UF 10% 250VDC RADIAL |
3,363 | 9.88 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634 L x 0.630 W (41.50mm x 16.00mm) | 1.126 (28.60mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
B32776G1106K000CAP FILM 10UF 10% 1.3KVDC RADIAL |
2,958 | 10.49 |
RFQ |
Datasheet |
Radial | Bulk | B3277* - MKP DC-Link | Active | 10 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
C4AQLBW5700A3LKCAP FILM 70UF 10% 500VDC RADIAL |
2,701 | 10.51 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 70 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQLBW5500A3JKCAP FILM 50UF 10% 500VDC RADIAL |
2,628 | 11.18 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

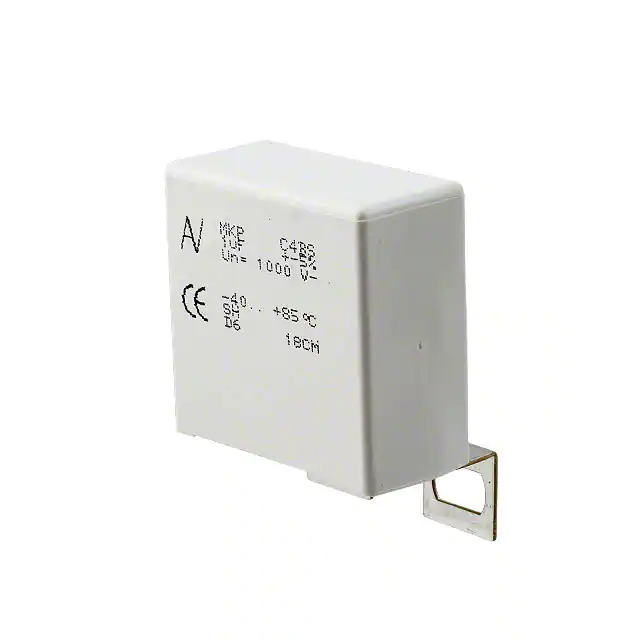

C4BSNBX4100ZAFJCAP FILM 1UF 5% 1KVDC SCREW |
3,041 | 11.95 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|

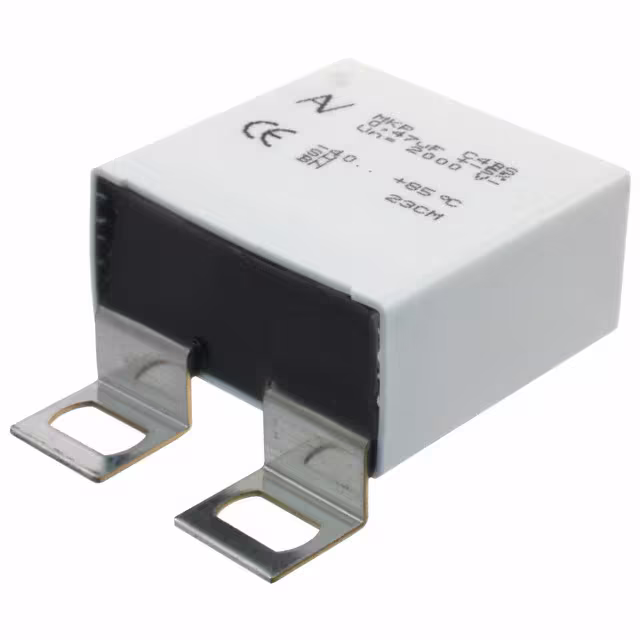

C4BSWBX3470ZAFJCAP FILM 0.47UF 5% 2KVDC SCREW |
3,319 | 11.95 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
C4BSTBX3470ZAFJCAP FILM 0.47UF 5% 1.6KVDC SCREW |
3,473 | 11.95 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | - | - | Screw Terminals | - | DC Link, DC Filtering; Snubber | - |
|
B32564J1336K000CAP FILM 33UF 10% 100VDC 2DIP |
3,406 | 11.96 |
RFQ |
Datasheet |
2-DIP | Bulk | B3256* - MKT SilverCap™ | Not For New Designs | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.142 L x 0.512 W (29.00mm x 13.00mm) | 0.780 (19.80mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
C4AEOBW5200A3LJCAP FILM 20UF 5% 900VDC RADIAL |
3,824 | 12.80 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AQLBW5900A3OKCAP FILM 90UF 10% 500VDC RADIAL |
2,610 | 13.54 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 90 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 1.976 (50.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
564PMB122KSP2CAP FILM 0.56UF 1.2KVDC CHAS MT |
2,835 | 14.80 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|

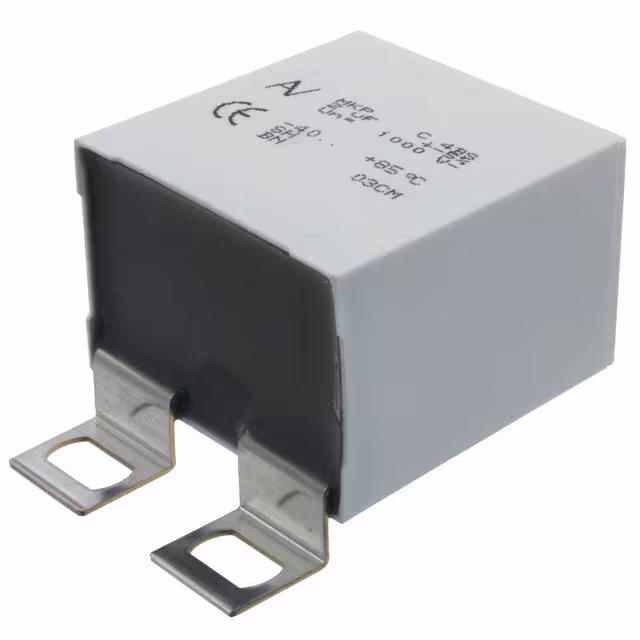

C4BSNBX4200ZALJCAP FILM 2UF 5% 1KVDC SCREW |
2,344 | 14.93 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|

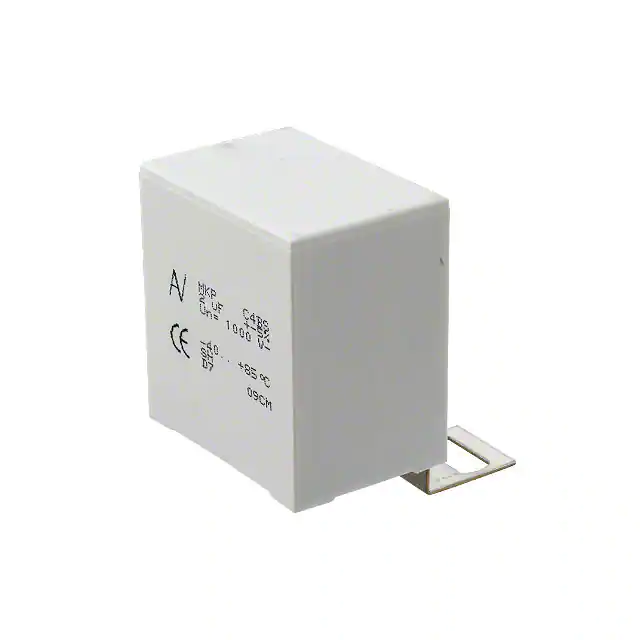

C4BSNBX4200ZBLJCAP FILM 2UF 5% 1KVDC SCREW |
3,215 | 14.93 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
R76TW412050H3JCAP FILM 1.2UF 5% 1.6KVDC RADIAL |
3,042 | 15.62 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 1.2 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
B32776G0206K000CAP FILM 20UF 10% 1.1KVDC RADIAL |
3,564 | 15.74 |
RFQ |
Datasheet |
Radial | Bulk | B3277* - MKP DC-Link | Active | 20 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|

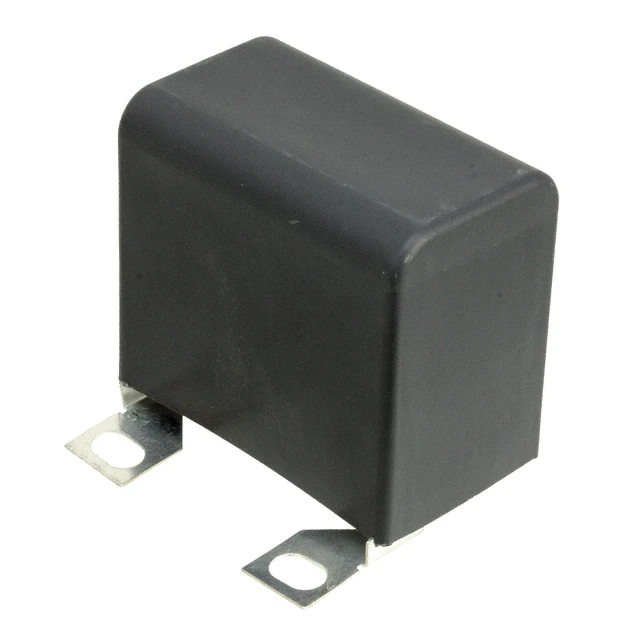

MKP386M550125YT4CAP FILM 5UF 5% 1.25KVDC SCREW |
2,695 | 17.48 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 5 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.457 (37.00mm) | Snubber | - |
|
|
MKP386M515200YT4CAP FILM 1.5UF 5% 2KVDC SCREW |
2,782 | 17.48 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 1.5 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283 L x 1.378 W (58.00mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.457 (37.00mm) | Snubber | - |
|
R60EW61005000KCAP FILM 100UF 10% 100VDC RADIAL |
340 | 19.65 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 100 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.579 (40.10mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
