Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

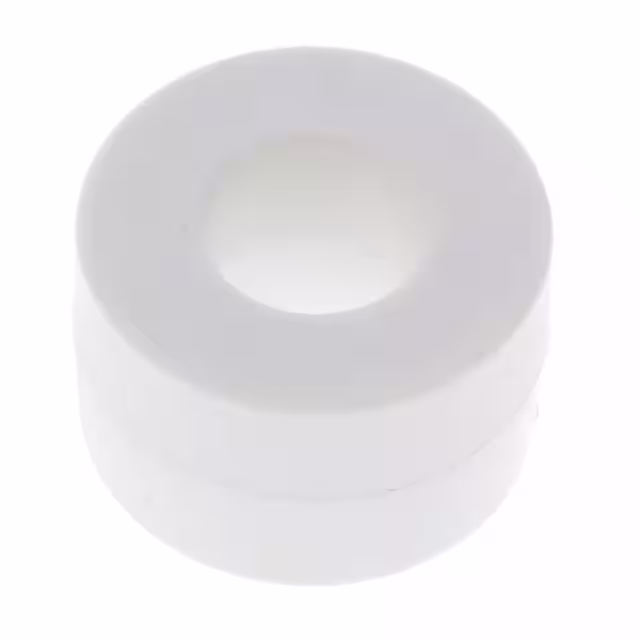

	LRF251515MKCX NANOCRYSTALLINE CORE, 25X15X15 United Chemi-Con	2,961	8.19	RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	1.114 (28.30mm)	38.1 µH	-	Ungapped	-	-	-	-	63	-	-	Uncoated	-

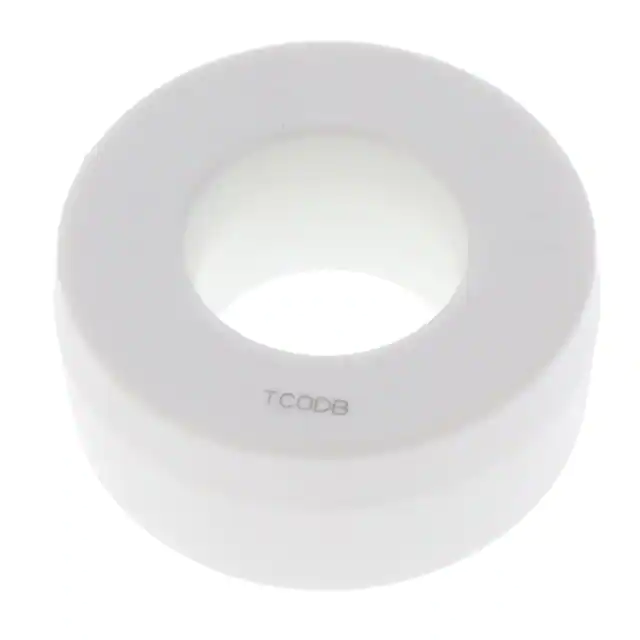

	LRF372315MKCX NANOCRYSTALLINE CORE, 37X23X15 United Chemi-Con	3,525	12.01	RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	1.594 (40.50mm)	34.7 µH	-	Ungapped	-	-	-	-	83	-	-	Uncoated	-

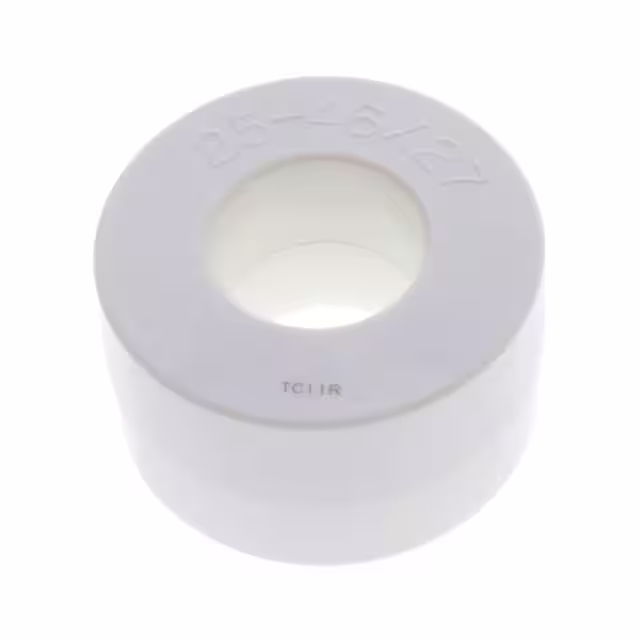

	LRF462725MKCX NANOCRYSTALLINE CORE, 46X27X25 United Chemi-Con	3,969	21.62	RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	1.945 (49.40mm)	64.6 µH	-	Ungapped	-	-	-	-	190	-	-	Uncoated	-

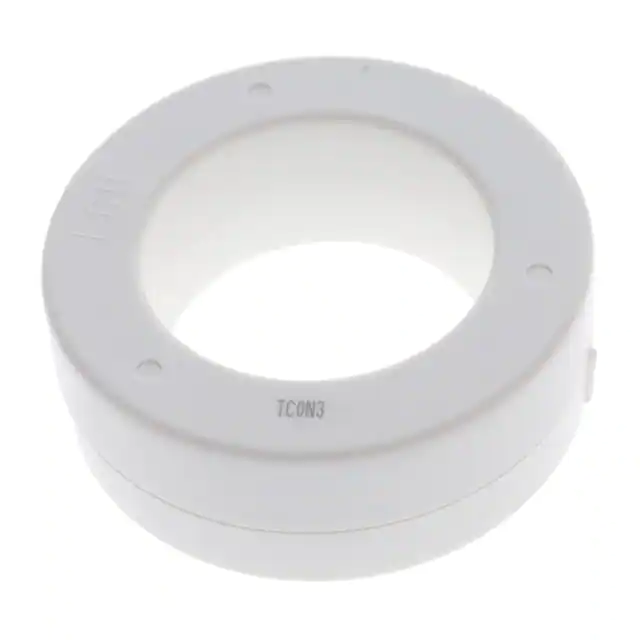

	LRF624520MKCX NANOCRYSTALLINE CORE, 62X45X20 United Chemi-Con	3,380	24.85	RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	2.598 (66.00mm)	31.5 µH	-	Ungapped	-	-	-	-	1681	-	-	Uncoated	-
